Product · Counter-UAS hardware

OculiSupra

See the drone before it matters. A rugged, all-in-one sensing node that fuses optical, thermal, and acoustic detection — with the AI to make sense of it running right onboard.

Optical Thermal Acoustic Edge AI onboard
Scroll
Why OculiSupra

Small drones.
Big problem.

Cheap, fast, and nearly silent, small UAS slip past traditional security at airports, stadiums, prisons, and forward positions. OculiSupra is a purpose-built answer: one weatherproof node that watches, listens, and thinks — continuously.

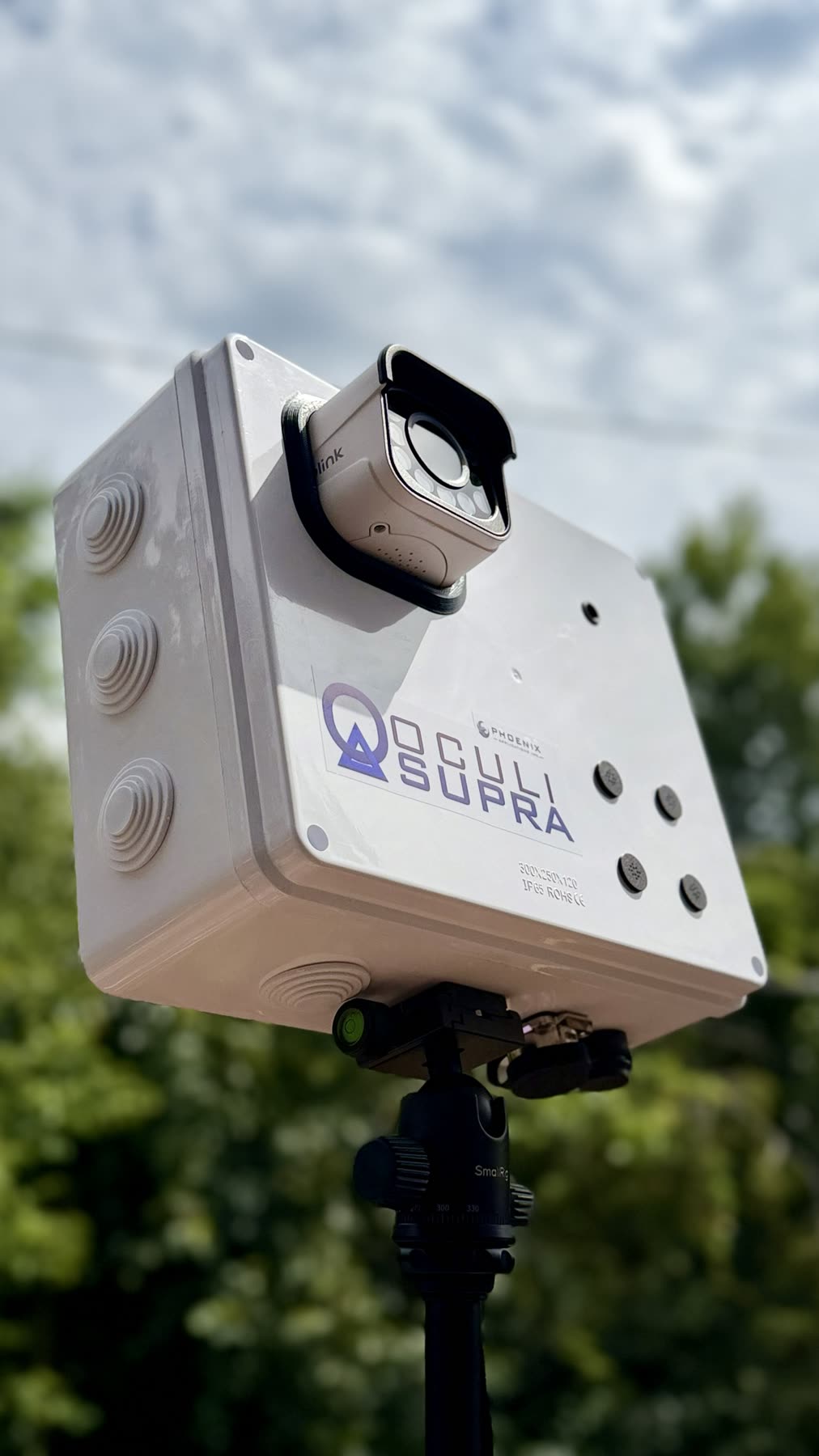

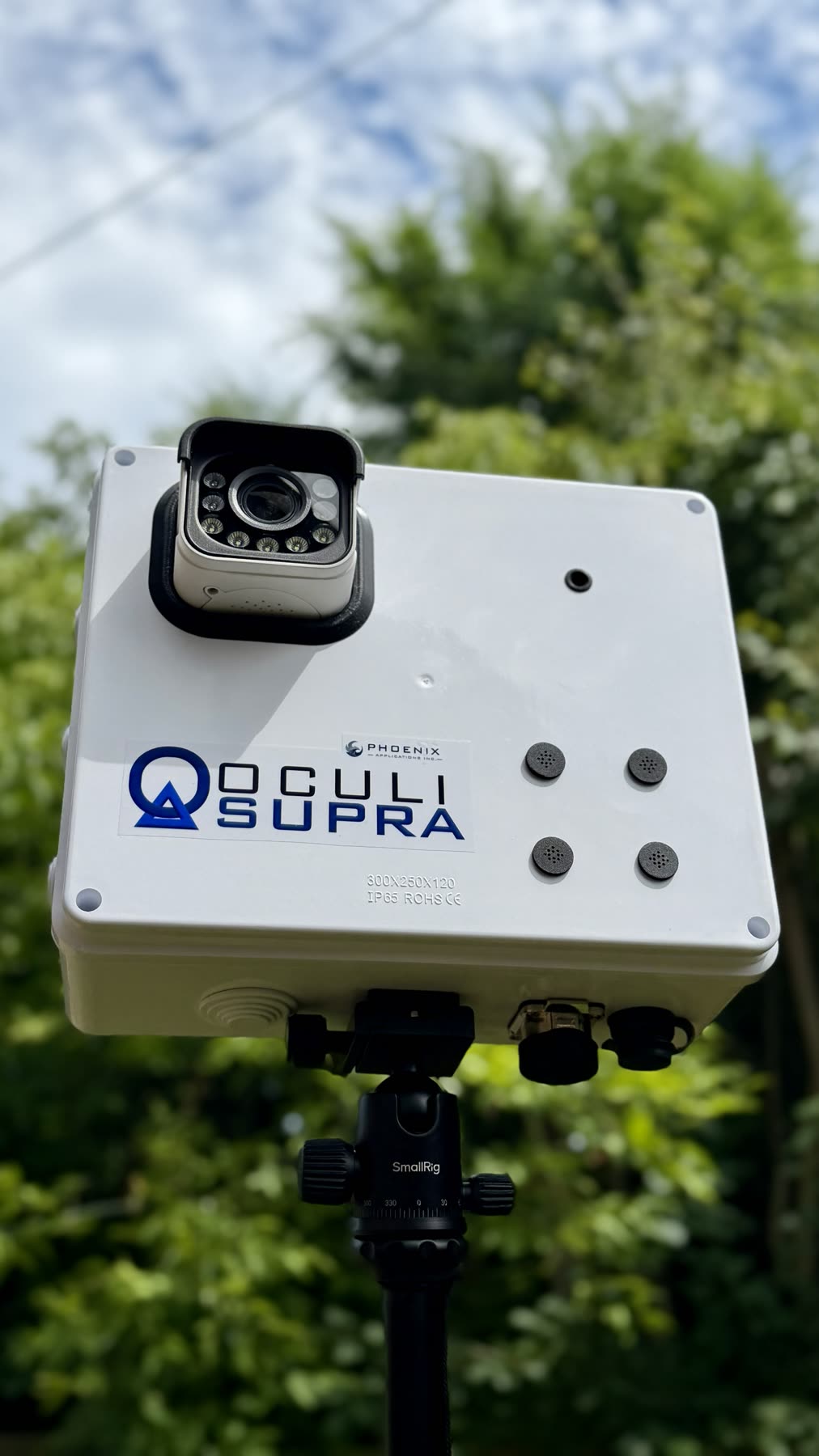

// OculiSupra unit OculiSupra multi-sensor counter-UAS unit with thermal camera and microphone array
The hardware

One node.
Every sense.

A high-resolution optical camera, a thermal imager, and a four-microphone acoustic array share one IP66 enclosure with embedded GPU compute. Mount it on a pole, tripod, or wall, connect power-over-Ethernet, and it starts watching the sky.

IP66 weatherproof−20 °C to 60 °CPoE — single cablePole · Tripod · Wall
Sensor fusion

Three ways to catch
one intruder

Any single sensor can be fooled — by distance, darkness, or noise. OculiSupra cross-checks every contact across three independent modalities, fused onboard by CEREBRO.

EO

Optical detection

A high-resolution camera runs real-time computer vision to spot, classify, and track airframes — even small quadcopters against cluttered backgrounds.

IR

Thermal imaging

A thermal imager picks up motor and battery heat signatures, keeping detection alive at night, in haze, and against the sun.

AU

Acoustic array

A four-microphone array recognizes rotor acoustics and helps localize sound sources — including drones the cameras can't see yet.

See it live

Real drones.
Real detections.

Unedited field footage from our detection pipeline: live classification and tracking of small UAS in real conditions.

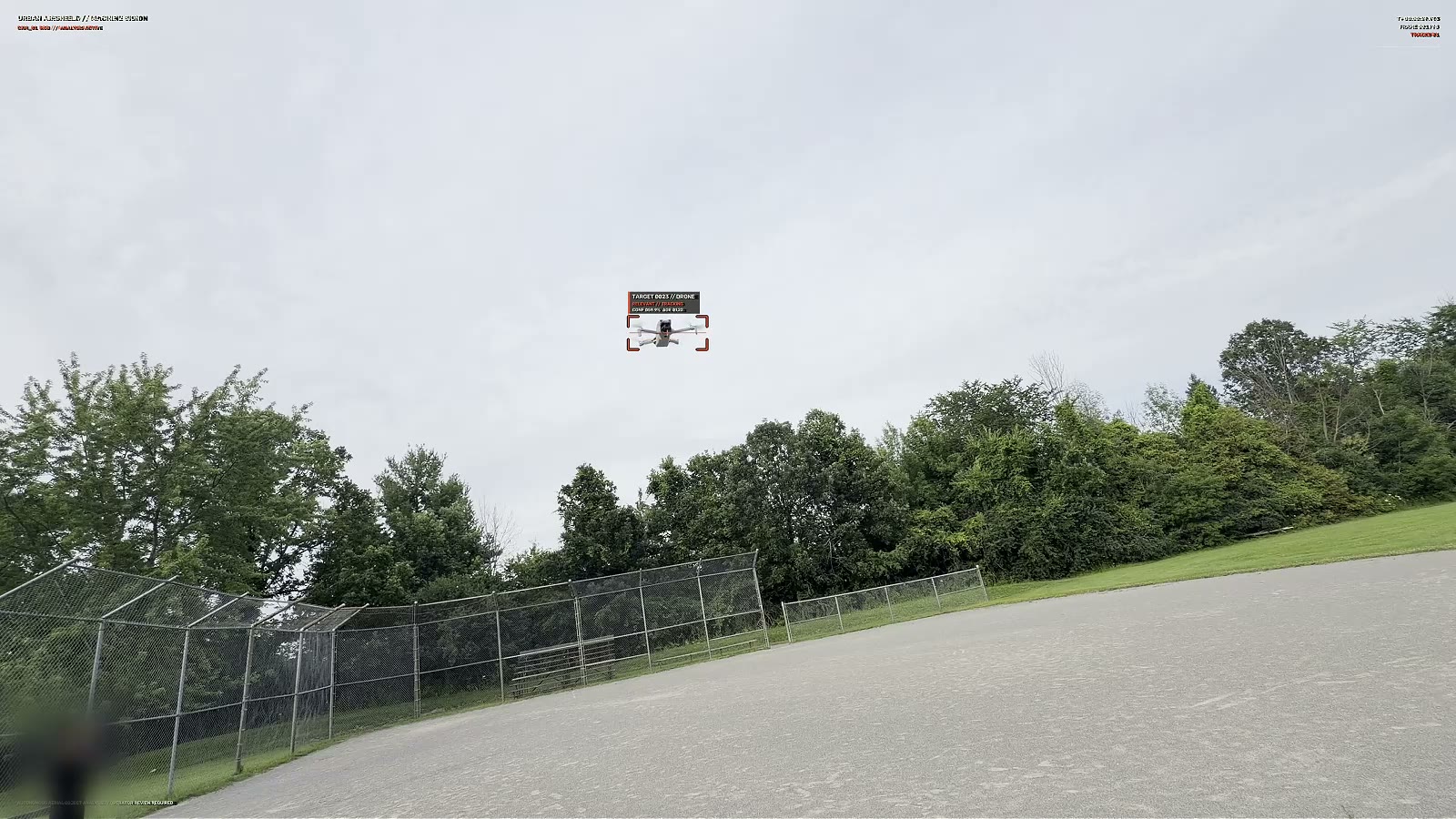

// Field test — live detection
Actual field footageReal-time classificationConfidence-scored tracks
Under the hood

Engineered to live
outdoors

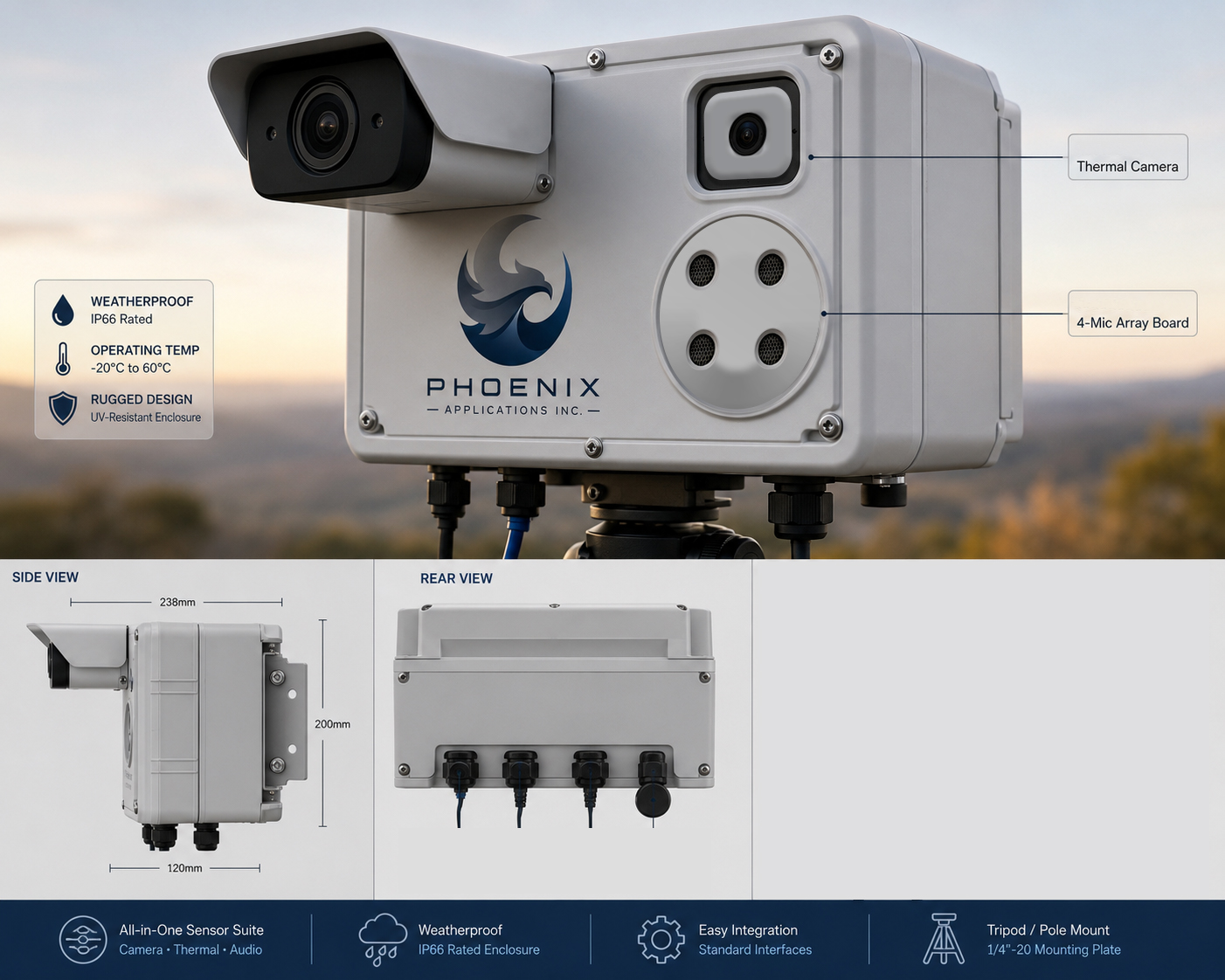

// Reference design OculiSupra annotated views: side, rear, and internal layout
SPEC

Field-serviceable by design

Standard interfaces, one PoE run for data and power, and a compact footprint that mounts anywhere a camera can. Inside: embedded GPU compute sized to run the full CEREBRO perception stack on-device.

All-in-one sensor suiteStandard interfaces1/4"-20 mounting
SensorsHigh-resolution optical camera · thermal imager · 4-microphone acoustic array
Onboard computeEmbedded GPU module running the CEREBRO edge AI stack — detection happens on-device
EnvironmentalIP66-rated, UV-resistant enclosure · operating temperature −20 °C to 60 °C
ConnectivityPower-over-Ethernet (data + power on one cable) · standard USB / I2C sensor interfaces
Dimensions300 mm × 250 mm × 120 mm
MountingPole, wall, or tripod — standard 1/4"-20 mounting plate
Better together

The eyes of the
Phoenix stack

OculiSupra feeds the rest of the stack: CEREBRO does the thinking onboard, and detections land on the VANTAGE operating picture.

Next step

Put eyes on your airspace

Tell us about your site — we'll walk you through coverage, deployment, and a live detection demo.
